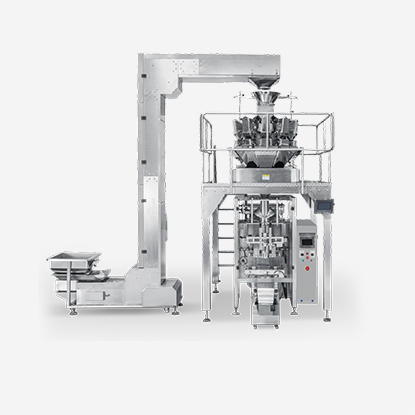

High speed & high precision weighing is the uniqueness of multi head weigh filler. SI Series is well known for its pouch finish & sealing intactness which prevents leakage Of inert gas from pouches & gives extended products shelf life.
HIGHLY SUITABLE FOR :- Kurkure and Potato Chips, Farsan, Chiwda, Namkeen, Dry - Fruits, Pulses, Grains, Tea, Sugar, Seeds, Frozen Cut Vegetable Etx.
Control | : | PLC Controlled |
Mode of operation | : | Servo Motor / Pneumatic |
Filling Speed | : | 1000 to 4000 pouches/hr ( Depending upon the size ) |
Filling Capacity (Range) | : | 10 g to 1 kg |
Packaging Material | : | Any Heat sealable Laminated Films |
Power Requirements | : | 420V. AC Three Phase, 50Hz |
Compressed Air Req. | : | 6 CFM @ 4kg/cm2 |
Reel Care Diameter | : | 70 mm to 76 mm Max. Weight 50 kg. |
DIMENSIONS / Wt. Approx | : | Height 15 ft, Length 6 ft, Width 10ft 1400 Kg |
Film width size | : | 420 mm max |
Real core dia | : | 70-76mm max |
HIGHLY SUITABLE FOR :- Kurkure and Potato Chips, Farsan, Chiwda, Namkeen, Dry - Fruits, Pulses, Grains, Tea, Sugar, Seeds, Frozen Cut Vegetable Etx.
